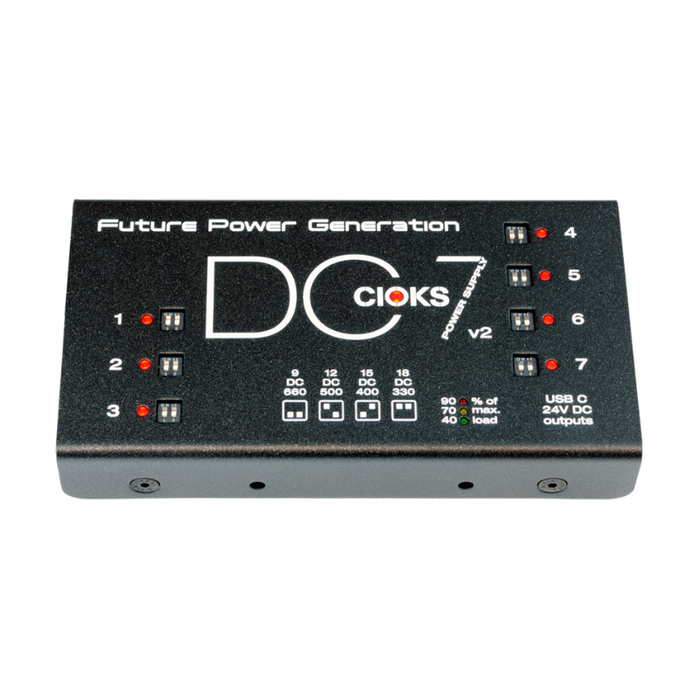

Cioks DC7 v2

Meet DC7 v2!

DC7 v2 is the latest version of the award-winning DC7. It remains the thinnest, most flexible and most powerful power supply for effects pedals on the market, and we have now updated it with a USB-C outlet delivering three times the power the original USB-A outlet did on DC7 (15W instead of 5W).

DC7 v2 has also been also optimized to run more efficiently and therefore slightly cooler than the original DC7 did while still providing enough power to kickstart a small sun.

Power Supply features:
• 7 isolated DC outlets.
• 660mA at 9V DC on each outlet.
• 4 selectable voltages on each outlet (9V, 12V, 15V or 18V DC).
• 5V USB outlet (1000mA).
• 24V DC auxiliary outlet (2000mA).


CIOKS DC7 specifications:
• Groundbreaking 1-inch profile (25.4mm).
• 2-stage switch-mode power supply topology.
• Ultra-low noise achieved by multistage filtering.
• Individual power limit LED on all outputs.
• Built-in true power meter showing the total load.
• Global overload status LED.
• Universal mains input voltage: 90 to 265V AC.
• Total maximum output power: 48W.
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards.
• Expandable with CIOKS 4, CIOKS 8 or other compatible units with 24V input voltage for additional isolated outputs.
• Weighs 1.1 lbs (500 grams).



CIOKS DC7 includes :

• CIOKS DC7 power supply
• Mains power cord
• Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
• Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
• Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
• Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
• Split Flex type 1 – powers two pedals of a single outlet x1
• 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
• Mounting hardware: 2 screws and a hex-key
• Manual
• Product sheet (drill guide)
• CIOKS sticker sheet
• Flex guide
